Architectural lighting works to serve and enhance the architecture, not merely as an accessory, to create a cohesive spatial experience. So, architectural lighting is an intersection of art (architecture) and technology (lighting). The architecture being illuminated or lighted may be commercial or residential.
Architectural lighting works to foster the spatial experience. Lighting can influence mood, texture, spatial awareness, Generally, lighting design should account for the specific type of action being illuminated; the amount of light provided, the color of the light, which may affect the optics for particular objects, such as works of art, and the overall, whole environment. Our latest range of products blends perfectly with modern architectural lighting concepts.
Boast an extraordinary stroke of Luminance!

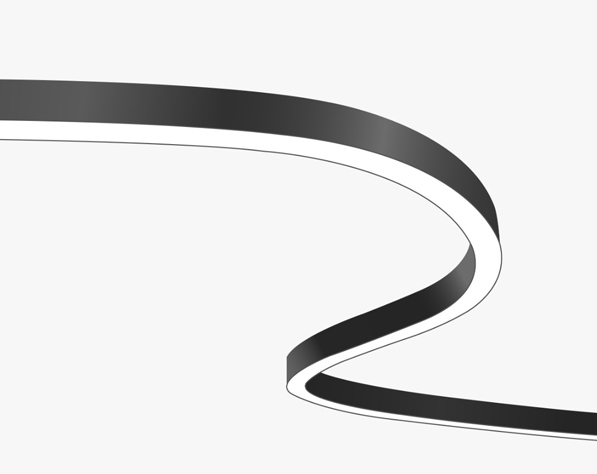

This contemporary aerial luminaire is a masterpiece that will add a swanky ambiance to your space. The LED fixture features excellent glare-free light distribution and lightweight extruded aluminium housing for an easy installation. Its sleek design and functionality blend in an incredibly eye-catching ribbon-like shape, making a dapper statement while saving you up to 80% on energy costs.
CODE | LSR 1020 / LSR 1030 |
---|---|
WATTAGE | 20W/30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | (80/85/90) / (70/75/80) |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 1000X70X60 |
Brand: | Travel Lugage |
---|---|
Color | Sky |
- Aesthetically elegant & functional design.
- Improved efficiency.
- Uniform Light Distribution.
- Save up to 80% of Energy.
- Better glare control.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

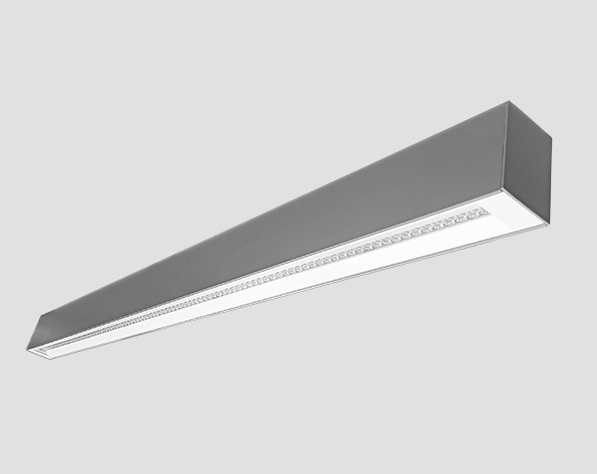

Sonic a perfect suspended design with step in optics offering a combination of functionality and design. A linear lens combination gives a unique look to this product. A aesthetically pleasant product suitable in various applications like offices, restaurants, Showrooms etc.
CODE | LPS 5025 / LPS 5040 |
---|---|
WATTAGE | 25W/40W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 100° |
EFFICACY (lm/W) | (100/105/110) / (90/95/100) |
LENS | Low Glare Linear PC Lens |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 1177X57.7X85.6 |
DRIVER TYPE | Dali/Analogue |
---|---|
LENGTH | 1177mm + Continues... |
- Aesthetically elegant & functional design.
- Improved efficiency.
- Uniform Light Distribution.
- Save up to 80% of Energy.
- Better glare control.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

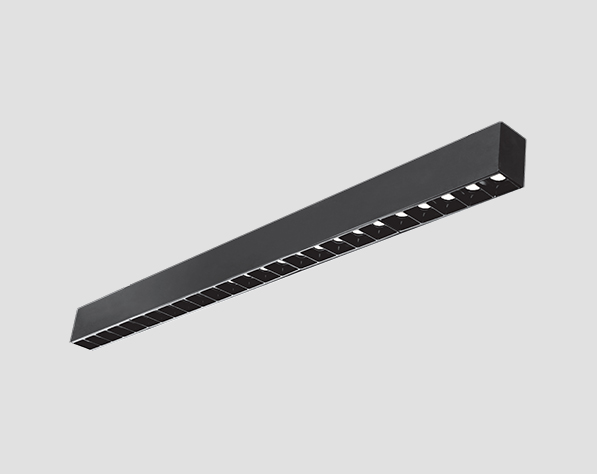

The suspended aluminum extrusion with continuous reflectors optics that offers improved efficiency with focus on reduced UGR. Various customisation available with prismatic lens in cell louvers gives flexible light option to the product
CODE | LPV 5130 |
---|---|
WATTAGE | 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 35° |
EFFICACY (lm/W) | 85/90/95 |
REFLECTOR | Low Glare Linear PC Lens |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 1186X57.7X85.6 |
DRIVER TYPE | Dali/Analogue |
---|---|
LENGTH | 1186mm + Continues... |
- Aesthetically elegant & functional design.
- Improved efficiency.
- Uniform Light Distribution.
- Save up to 80% of Energy.
- Better glare control.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants
The suspended aluminum extrusion with three reflectors module optics that offers improved efficiency with focus on reduced UGR. Various customisation available with prismatic lens in cell louvers gives flexible light option to the product.
CODE | LPV 5130 |
---|---|
WATTAGE | 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 35° |
EFFICACY (lm/W) | 85/90/95 |
REFLECTOR | Low Glare Linear PC Lens |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 1215X57.7X85.6 |
DRIVER TYPE | Dali/Analogue |
---|
- Aesthetically elegant & functional design.
- Improved efficiency.
- Uniform Light Distribution.
- Save up to 80% of Energy.
- Better glare control.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants
Tulip a suspended extruded aluminium housing design offers improved uniformity with soft C profile LG7 diffuser lit on all three sides offering a soft homogeneous, volumetric light distribution snap fit diffuser for ease in maintenance.
CODE | LSO 5020 / LSO 5030 |
---|---|
WATTAGE | 20W / 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 120° |
EFFICACY (lm/W) | 80/85/90 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 1200X50.5X75 |
DRIVER TYPE | Dali/Analogue |
---|---|
LENGTH | 1200mm + Continues... |
- Luminaire with three side fit diffuser.
- Improved Uniformity.
- Functionally efficient.
- Extruded body for continuous installation.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

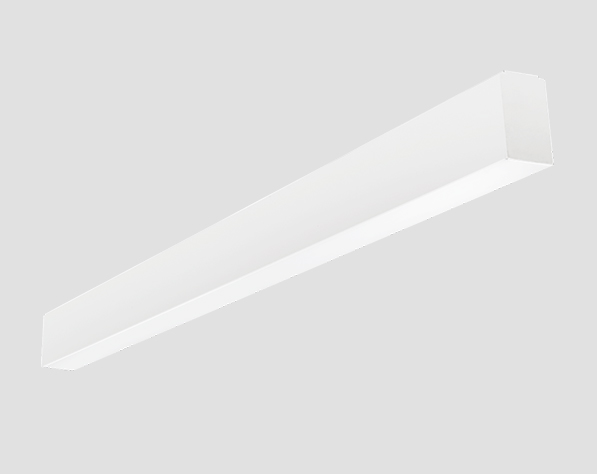

The extruded aluminium housing offers a precise in-line appearance. This LED fixture comes with excellent light distribution, high wired LED driver to be used in suspended/surface/recessed applications.
CODE | LSL-S 5130 / LSL-S 5140 |
---|---|
WATTAGE | 30W / 40W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 80/85/90 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 1000/1200X52.8X101 |
DRIVER TYPE | Dali/Analogue |
---|---|
LENGTH | 1000mm/1200mm + Continues... |
- Extruded aluminium housing.
- Direct/Indirect light distribution
- Snap fit diffuser for ease in installation.
- Improved efficiency.
- Stand alone or continuous mounting option.
- Customizable to varied lengths.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants
Suspended Down and Up & Down single length individual luminaire, aluminium extruded natural anodised housing with matt finish extruded PMMA opal diffuser with uniform light distribution.
CODE | LTL 2035 |
---|---|
WATTAGE | 35W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 90/95/100 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 1195X145X65 |
DRIVER TYPE | Dali/Analogue |
---|---|
LENGTH | 1195mm + Continues... |
- Extruded aluminium housing.
- Improved efficiency.
- Glare free evenly distributed.
- Long Life Span.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

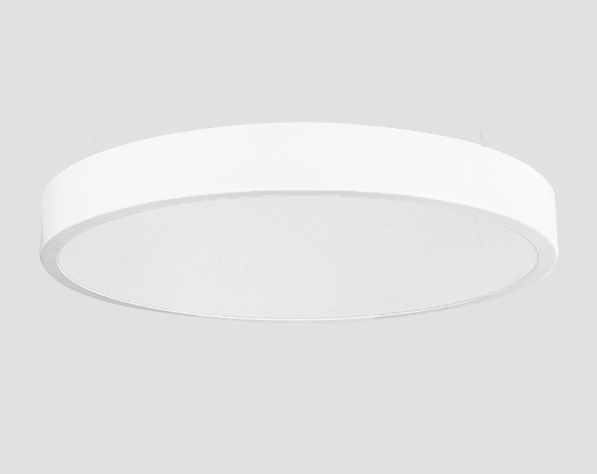

Round luminaire aluminium, rolled profile, seamlessly welded housing. Highly reflective coating for improved efficiency with high transmission factor diffuser. Rolled aluminium frame accessory along with fixture for ease in installation.
CODE | ALP-S 4130 / ALP-S 5145 / ALP-S 6156 / ALP-S 9180 / ALP-S 12100 |
---|---|
WATTAGE | 30W / 45W / 56W / 80W / 100W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | (75/80/85) / (65/70/75) / (65/70/75) / (65/70/75) / (65/70/75) |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | (400/500/600/900/1170)X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Circular disk made of special aluminium bending technology.
- Laser cut HTF diffuser for improved efficiency.
- Precise dimension.
- Aesthetically appealing.
- Special high efficiency diffuser designed for LED source.
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

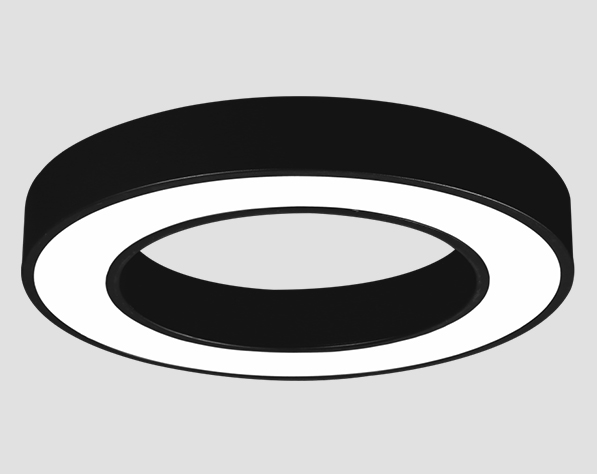

Round extruded aluminium housing with diffuser. Smart circular ring gives functional decorative look. Also diffuser is so fixed to provide uniform light output.
CODE | ARL 6030 / ARL 9055 / ARL 12080 |
---|---|
WATTAGE | 30W / 55W / 80W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 65/70/75 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | (400/900/1170)X60 |
DRIVER TYPE | Dali/Analogue |
---|---|
DRIVER TYPE | 600mm / 900mm / 1170mm + Continues... |
- Made of special aluminium bending technology
- Laser cut HTF diffuser for improved efficiency
- Precise dimension
- Aesthetically appealing
- Special high efficiency diffuse designed for LED
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

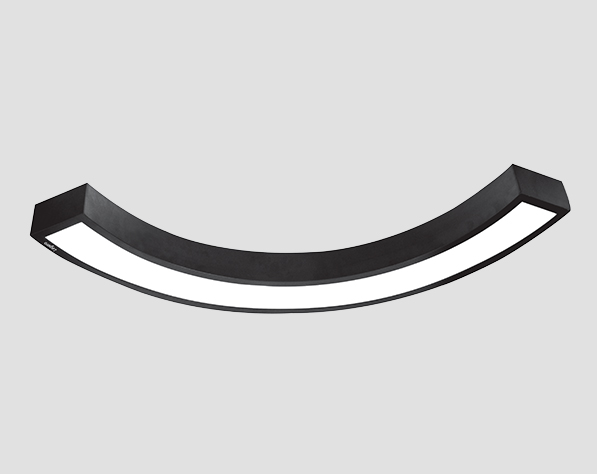

Extruded Aluminum housing in Circular Arc form with high transmissivity Diffuser. High efficient LEDs with uniform light distribution.
CODE | ACL 6030 |
---|---|
WATTAGE | 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 45/50/55 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 801.3X301.6X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Made of special aluminium bending technology
- Laser cut HTF diffuser for improved efficiency
- Precise dimension
- Aesthetically appealing
- Special high efficiency diffuse designed for LED
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants
Triangular extruded aluminium housing with soft corner and high transmissivity diffuser. High efficient LEDs for uniform light.
CODE | ATL-S 3030 |
---|---|
WATTAGE | 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 70/75/80 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 511X450X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Customizable to certain sizes on request.
- Laser cut HTF diffuser for improved efficiency.
- Aluminium extrusion housing.
- Especial PMMA diffuse designed for LED glare control.
- Aesthetically appealing
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

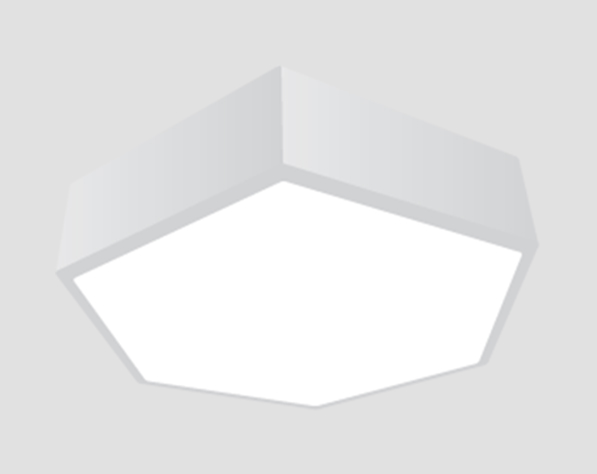

The extruded aluminium housing in hexagon shape with high transmissivity diffuser. High efficient LEDs for uniform light distribution.
CODE | AHL 6040 |
---|---|
WATTAGE | 40W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 60/65/70 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 672X582X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Customizable to certain sizes on request.
- Laser cut HTF diffuser for improved efficiency.
- Aluminium extrusion housing.
- Especial PMMA diffuse designed for LED glare control.
- Aesthetically appealing
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants
The extruded aluminium housing in hexagon shape with high transmissivity diffuser. High efficient LEDs for uniform light distribution.
CODE | AHL 6040 |
---|---|
WATTAGE | 40W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 60/65/70 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 672X582X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Customizable to certain sizes on request.
- Laser cut HTF diffuser for improved efficiency.
- Aluminium extrusion housing.
- Especial PMMA diffuse designed for LED glare control.
- Aesthetically appealing
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

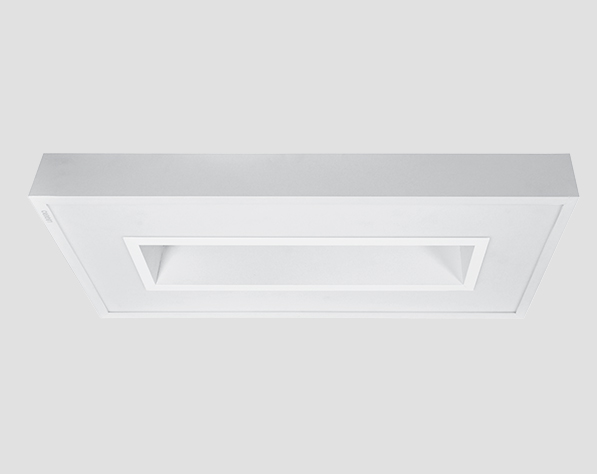

Rectangular shape extruded aluminium housing with high transmissivity diffuser gives functional look. Also high efficient LEDs & diffuser combination gives smooth & uniform light.
CODE | ARL 6330 |
---|---|
WATTAGE | 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 60/65/70 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 600X300X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Laser cut HTF diffuser for improved efficiency
- Aluminium extrusion housing
- Opal PMMA diffuser to provide glare free uniform output.
- Aesthetically appealing
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

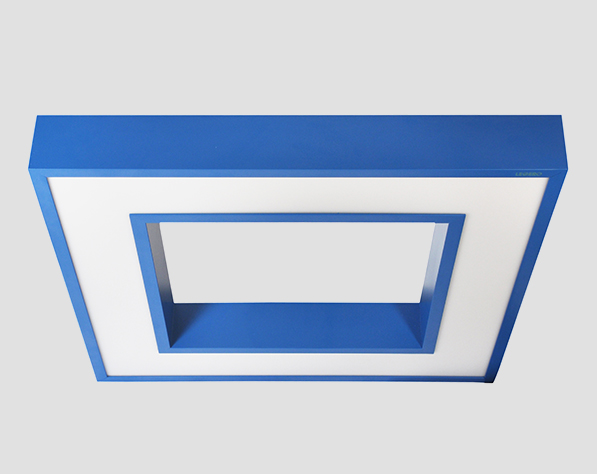

Square extruded aluminium housing with high transmissivity diffuser. Geometrical shape blends perfectly with ceiling design & gives unique product look.
CODE | AFL 5030 |
---|---|
WATTAGE | 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 50/55/60 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 500X500X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Laser cut HTF diffuser for improved efficiency
- Aluminium extrusion housing
- Opal PMMA diffuser to provide glare free uniform output.
- Aesthetically appealing
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants

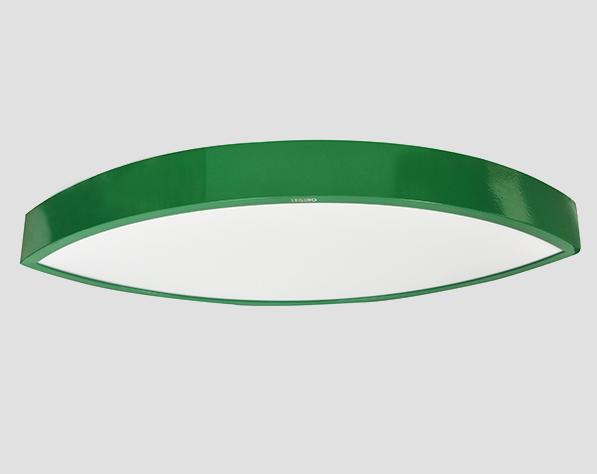

Extruded aluminium housing designed in leaf shape for unique & decorative look. High transmissivity diffuser is used to give smooth & glare free light output.
CODE | APL 6330 |
---|---|
WATTAGE | 30W |
CCT | 3000K/4000K/6000K |
BEAM ANGLE | 110° |
EFFICACY (lm/W) | 45/50/55 |
DIFFUSER | Opal Diffuser |
CRI | >80 |
IP | 20 |
WARRANTY | 2Years |
MOUNTING TYPE | Suspended |
DIMENSION (lXbXh)mm | 609X307X60 |
DRIVER TYPE | Dali/Analogue |
---|
- Laser cut HTF diffuser for improved efficiency
- Aluminium extrusion housing
- Opal PMMA diffuser to provide glare free uniform output.
- Aesthetically appealing
- Offices
- Home
- Showrooms
- Banks
- Café & Restaurants
