Outdoor Lighting Design is important in the overall process of the outdoor lighting concept. This is the step where art and technique integrate to bring the landscape lighting professional into their own special niche. Lighting techniques are wide and varied to effectively accentuate architectural and natural features on the property. With the sundry product, we offer walkway lighting, Street Lighting, and landscape lighting.
The overall effect is dependent on what you would like the end result to be. Whether it is an imposing dramatic effect or a subtle and elegant look, your lighting professional will create the atmosphere you desire. Keep in mind that several fixtures focused on an area from multiple angles can highlight an object with a softer light than a single very bright fixture. We focus more on concept assistance through our products.

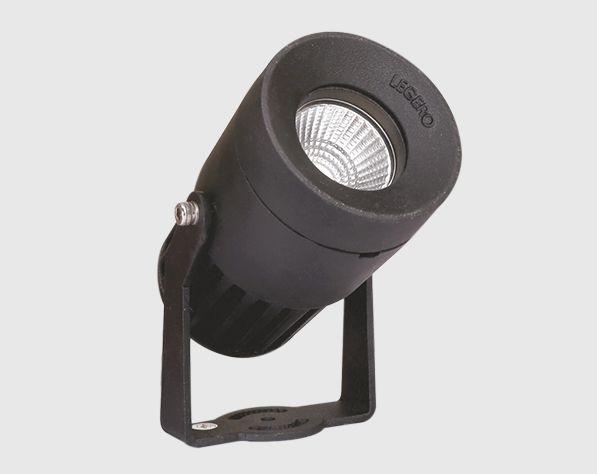

An ultra compact, IP 66, LED light luminaire. Its corrosion proof, die cast aluminium composite construction makes it ideal for the harshest corrosive environment. Spike available to ease the installation.
- High Grade aluminum pressure die cast housing.
- Toughened Glass cover.
- Comes in two different beam angle options 60° & 90°.
- IP66, high Ingress protection against dust and moisture.
- Long Life Span.
Parameters | LSO 3007 | LSO 3010 | LSO 3015 |
---|---|---|---|
Rated System Wattage | 7w | 10w | 15w |
IP Rating, Electrical Class | IP66, Class I | IP66, Class I | IP66, Class I |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 85% | ≥ 85% | ≥ 85% |
System Efficacy | 70 lm/W | 70 lm/W | 70 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 |
Surge Protection | 4 kV | 4 kV | 4 kV |
CCT | 3000K | 3000K | 3000K |
CRI | > 80 | > 80 | > 80 |
Beam Angle Cut | 50° | 50° | 50° |
Cut Off-High Voltage | ≥325 Vac ± 10V | ≥325 Vac ± 10V | ≥325 Vac ± 10V |
- Parking
- Garden
- Malls
- Highlight the walls
Wall mounted IP 65 luminaire made of high grade aluminium extrusion & die cast aluminium heatsink for effective heat dissipation with high efficient COB for better output. The luminiare is available in different beam angles with toughened glass.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LCO 4407 | LCO 4410 | LCO 4415 |
---|---|---|---|
Rated System Wattage | 7w | 10w | 15w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II | IP65, Class II |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 82% | ≥ 82% | ≥ 82% |
System Efficacy | 85/90/95 lm/W | 80/85/90 lm/W | 75/80/85 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 |
Surge Protection | 4 kV | 4 kV | 4 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 | > 80 |
Beam Angle Cut | 50° | 50° | 50° |
Cut Off-High Voltage | ≥325 Vac ± 10V | ≥325 Vac ± 10V | ≥325 Vac ± 10V |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

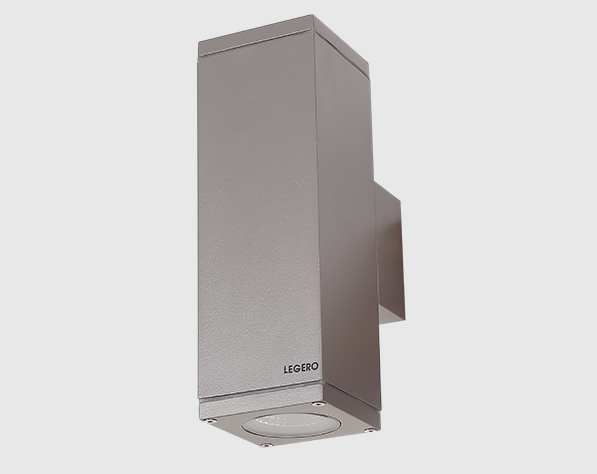

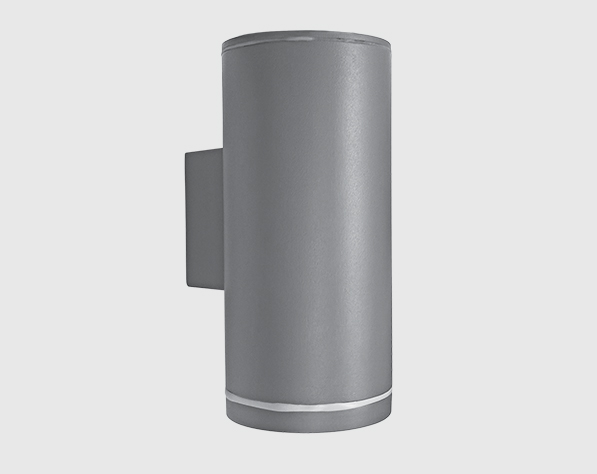

Wall mounted IP 65 up-down luminaire made of high grade aluminium extrusion & die cast aluminium heatsink for effective heat dissipation with high efficient COB for better output. The luminiare is available in different beam angles with toughened glass
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LCO 4514 (a) | LCO 4520 (b) | LCO 4530 (b) |
---|---|---|---|
Rated System Wattage | 2x7w | 2x10w | 2x15w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II | IP65, Class II |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 82% | ≥ 82% | ≥ 82% |
System Efficacy | 85/90/95 lm/W | 85/90/95 lm/W | 85/90/95 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 |
Surge Protection | 4 kV | 4 kV | 4 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 | > 80 |
Beam Angle Cut | 50° | 50° | 50° |
Cut Off-High Voltage | ≥325 Vac ± 10V | ≥325 Vac ± 10V | ≥325 Vac ± 10V |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

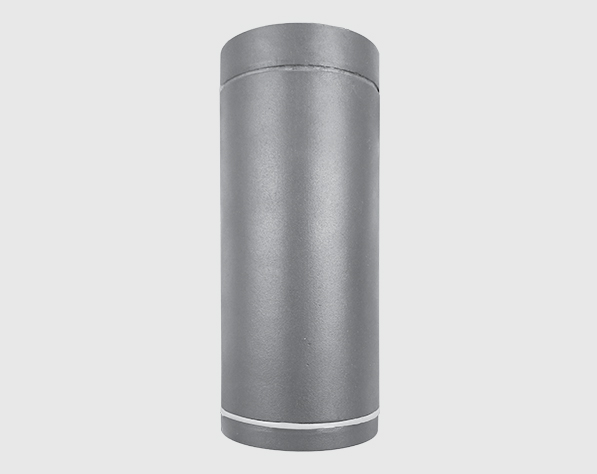

Ceiling mounted IP 65 luminaire made of high grade aluminium extrusion & die cast aluminium heatsink for effective heat dissipation with high efficient COB for better output. The luminiare is available in different beam angles with toughened glass.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LCO 4307 | LCO 4310 | LCO 4315 |
---|---|---|---|
Rated System Wattage | 7w | 10w | 15w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II | IP65, Class II |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 82% | ≥ 85% | ≥ 85% |
System Efficacy | 85/90/95 lm/W | 85/90/95 lm/W | 85/90/95 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 |
Surge Protection | 4 kV | 4 kV | 4 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 | > 80 |
Beam Angle Cut | 50° | 50° | 50° |
Cut Off-High Voltage | ≥325 Vac ± 10V | ≥325 Vac ± 10V | ≥325 Vac ± 10V |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
Wall mounted IP 65 luminaire made of high grade aluminium extrusion & die cast aluminium heatsink for effective heat dissipation with high efficient COB for better output. The luminiare is available in different beam angles with toughened glass.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LSO 3207 | LSO 3210 | LSO 3215 |
---|---|---|---|
Rated System Wattage | 7w | 10w | 15w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II | IP65, Class II |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 82% | ≥ 85% | ≥ 85% |
System Efficacy | 85/90/95 lm/W | 80/85/90 lm/W | 75/80/85 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.98 | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 4 kV | 4 kV | 4 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 | > 80 |
Beam Angle Cut | 50° | 50° | 50° |
Cut Off-High Voltage | ≥325 Vac ± 10V | ≥325 Vac ± 10V | ≥325 Vac ± 10V |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

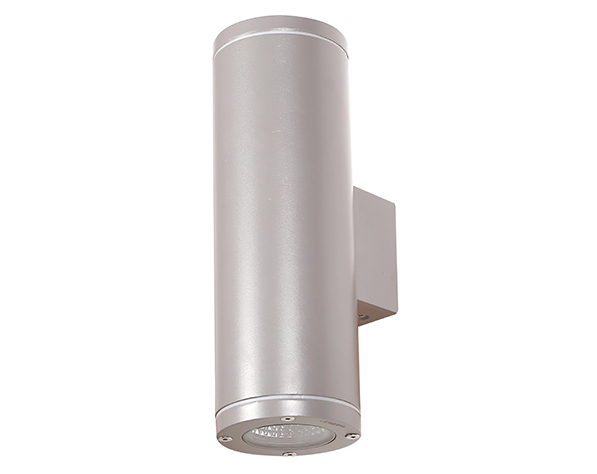

Wall mounted IP 65 up-down luminaire made of high grade aluminium extrusion & die cast aluminium heatsink for effective heat dissipation with high efficient COB for better output. The luminiare is available in different beam angles with toughened glass.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LSO 3314 | LSO 3320 | LSO 3330 |
---|---|---|---|
Rated System Wattage | 2x7w | 2x10w | 2x15w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II | IP65, Class II |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 82% | ≥ 85% | ≥ 85% |
System Efficacy | 85/90/95 lm/W | 80/85/90 lm/W | 75/80/85 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 |
Surge Protection | 4 kV | 4 kV | 4 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 | > 80 |
Beam Angle Cut | 50° | 50° | 50° |
Cut Off-High Voltage | ≥325 Vac ± 10V | ≥325 Vac ± 10V | ≥325 Vac ± 10V |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
Ceiling mounted IP 65 luminaire made of high grade aluminium extrusion & die cast aluminium heatsink for effective heat dissipation with high efficient COB for better output. The luminiare is available in different beam angles with toughened glass.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LCO 3407 | LCO 3410 | LCO 3415 |
---|---|---|---|
Rated System Wattage | 7w | 10w | 15w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II | IP65, Class II |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 82% | ≥ 82% | ≥ 82% |
System Efficacy | 85/90/95 lm/W | 85/90/90 lm/W | 85/90/85 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.98 | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 4 kV | 4 kV | 4 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 | > 80 |
Beam Angle Cut | 50° | 50° | 50° |
Cut Off-High Voltage | ≥325 Vac ± 10V | ≥325 Vac ± 10V | ≥325 Vac ± 10V |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
IP 65 SIA (bulk head) light is integrated with high efficient LEDs with milky diffuser covering. The fixture has integrated driver and is easy on maintenance.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LBH 0012 | LBH 0015 |
---|---|---|
Rated System Wattage | 12w | 15w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II |
Driver Type | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 85% | ≥ 85% |
System Efficacy | 70 lm/W | 80 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 15% | ≤ 15% |
Power Factor | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 2.8 kV | 3 kV |
CCT | 6000K | 6000K |
CRI | > 80 | > 80 |
Beam Angle Cut | 130° | 135° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

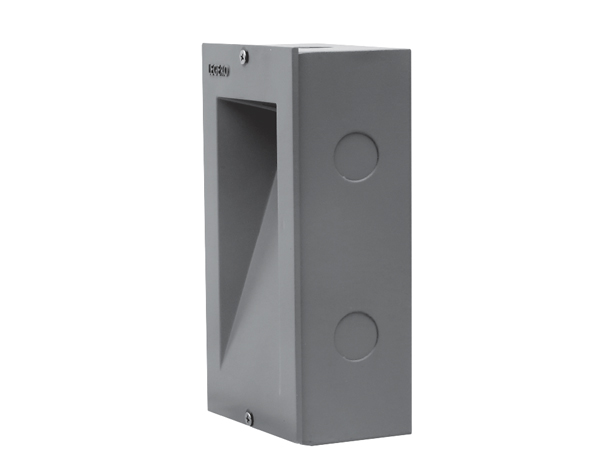

IP 65 Die Cast Aluminum Housing. Horizontal vertical scoop Step Light designed for safety and style on stairways, patios, decks, balcony areas, walkways and building perimeters with separate GI box enclosure & integrated driver.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LOD 2009 |
---|---|
Rated System Wattage | 9w |
IP Rating, Electrical Class | IP65, Class II |
Driver Type | HPF Non-Isolated |
Driver Efficiency | ≥ 85% |
System Efficacy | 10 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 20% |
Power Factor | ≥ 0.95 |
Surge Protection | 2.5kV |
CCT | 3000K |
CRI | > 80 |
Beam Angle Cut | 90° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

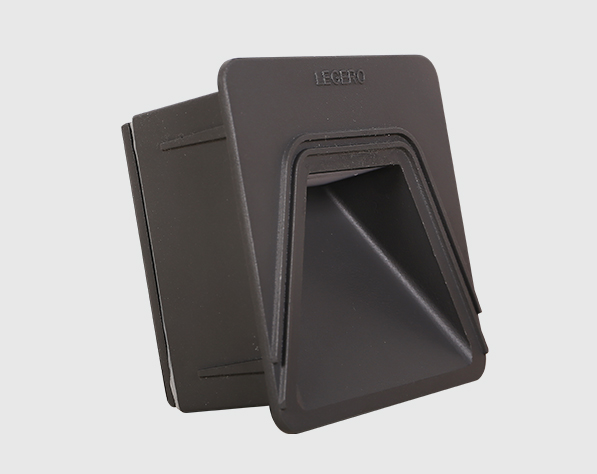

IP 65 designer step light with integrated high efficient LED designed for safety & style for stairways, patios, decks, balcony areas & walkways.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LOD 3004 | LOD 3006 |
---|---|---|
Rated System Wattage | 4w | 6w |
IP Rating, Electrical Class | IP65, Class II | IP65, Class II |
Driver Type | HPF Non-Isolated | HPF Non-Isolated |
Driver Efficiency | ≥ 85% | ≥ 85% |
System Efficacy | 10/15/20 lm/W | 10/15/20 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 20% | ≤ 20% |
Power Factor | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 2.5 kV | 2.5 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 |
Beam Angle Cut | 90° | 90° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
IP 65 designer step light with integrated high efficient LED designed for safety & style for stairways, patios, decks, balcony areas & walkways.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LOD 3006 |
---|---|
Rated System Wattage | 6w |
IP Rating, Electrical Class | IP65, Class II |
Driver Type | HPF Non-Isolated |
Driver Efficiency | ≥ 85% |
System Efficacy | 10/15/20 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 20% |
Power Factor | ≥ 0.95 |
Surge Protection | 2.5 kV |
CCT | 3000K/4000K/6000K |
CRI | > 80 |
Beam Angle Cut | 90° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

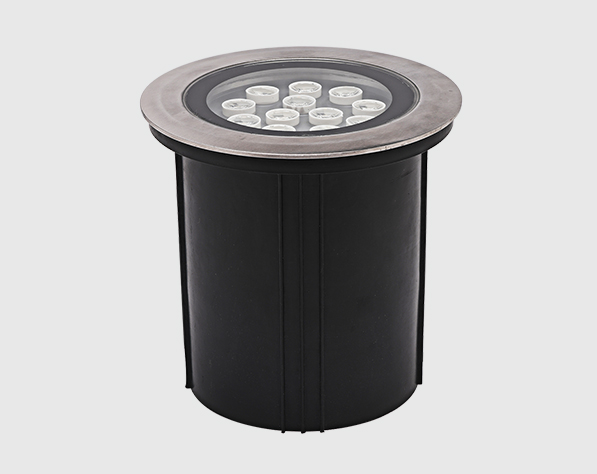

IP 67 in ground LED luminaire die cast housing stainless steel cover, anticorrosion resistant, tempered clear glass with optical lens & Integrated driver
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LOD 44501(a) | LOD 44503(b) | LOD 44509 (b) | LOD 44512 (c) | LOD 44515 (d) | LOD 44518 (d) |
---|---|---|---|---|---|---|
Rated System Wattage | 1w | 3w | 9w | 12w | 15w | 18w |
IP Rating, Electrical Class | IP67, Class I | IP67, Class I | IP67, Class I | IP67, Class I | IP67, Class I | IP67, Class I |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 50% | ≥ 70% | ≥ 75% | ≥ 80% | ≥ 75% | ≥ 85% |
System Efficacy | 50/60/65 lm/W | 70/75/80 lm/W | 55/60/65 lm/W | 85/90/95 lm/W | 55/60/65 lm/W | 85/90/95 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 250% | ≤ 14% | ≤ 10% | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.32 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 1.5 kV | 4 kV | 4 kV | 4 kV | 4 kV | 4 kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 70 | > 70 | > 70 | > 70 | > 70 | > 70 |
Beam Angle Cut | 24° | 24° | 24° | 16° | 24° | 16° |
- Outdoor Corridor
- Passage way
- Columns
IP 65 LED bollard is suitable for landscape stabilized lighting applications. Luminaire is made of high grade corrosion resistant powder coated aluminium body with UV stabilized vandal proof PC diffuser
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LBM 7009 |
---|---|
Rated System Wattage | 9w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 85% |
System Efficacy | 75/985 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 15% |
Power Factor | ≥ 0.95 |
Surge Protection | 3.5kV |
CCT | 3000K/6000K |
CRI | > 80 |
Beam Angle Cut | 95° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

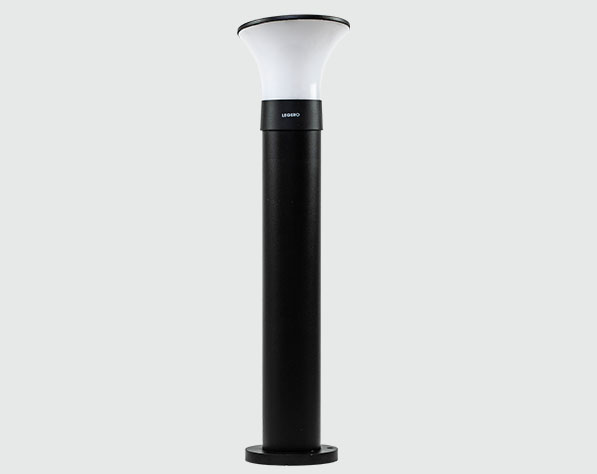

IP 65 LED bollard is suitable for landscape stabilized lighting applications. Luminaire is made of high grade corrosion resistant powder coated aluminium body with UV stabilized vandal proof PC diffuser.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LBF 7012 |
---|---|
Rated System Wattage | 12w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 85% |
System Efficacy | 50/55 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 12% |
Power Factor | ≥ 0.95 |
Surge Protection | 3.5kV |
CCT | 3000K/6000K |
CRI | > 80 |
Beam Angle Cut | 275° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

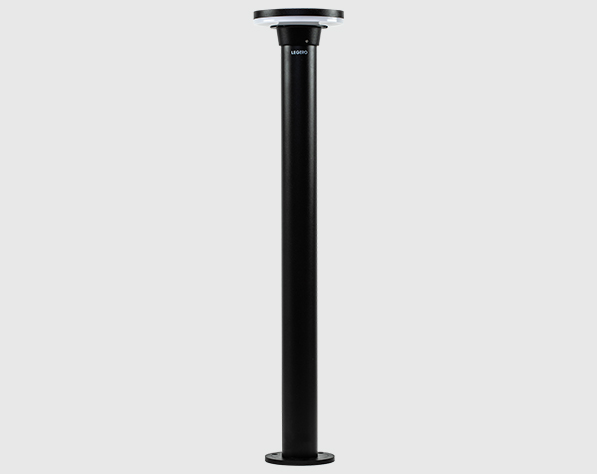

IP 65 LED bollard is suitable for landscape stabilized lighting applications. Luminaire is made of high grade corrosion resistant powder coated aluminium body with UV stabilized vandal proof PC diffuser.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LBT 7012 |
---|---|
Rated System Wattage | 12w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 85% |
System Efficacy | 65/70 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 12% |
Power Factor | ≥ 0.95 |
Surge Protection | 3.5kV |
CCT | 3000K/6000K |
CRI | > 80 |
Beam Angle Cut | 260° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
IP 65 LED bollard is suitable for landscape stabilized lighting applications. Luminaire is made of high grade corrosion resistant powder coated aluminium body with UV stabilized vandal proof PC diffuser.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LBP 6515 |
---|---|
Rated System Wattage | 15w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 85% |
System Efficacy | 45/50/55 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 15% |
Power Factor | ≥ 0.95 |
Surge Protection | 3.5kV |
CCT | 3000K/4000K/6000K |
CRI | > 80 |
Beam Angle Cut | 95° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

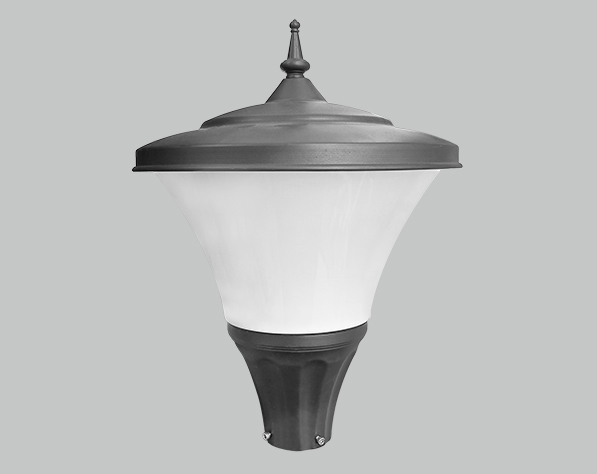

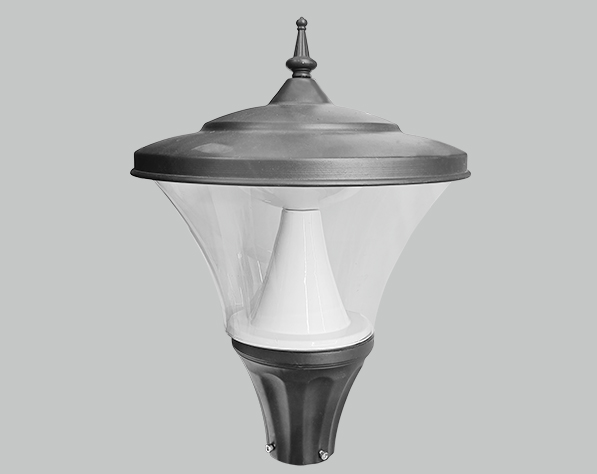

Post top fixture for pole mounted application. Aluminium housing with corrosion resistant powder coat and UV stabilised vandal proof clear diffuser. IP65 protection suitable for outdoor application.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LPT 4530 | LPT 6560 |
---|---|---|
Rated System Wattage | 30w | 60w |
IP Rating, Electrical Class | IP65, Class I | IP65, Class I |
Driver Type | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 88% | ≥ 88% |
System Efficacy | 60/65/70 lm/W | 60/65/70 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 4kV | 4kV |
CCT | 3000K/4000K/6000K | 3000K/4000K/6000K |
CRI | > 80 | > 80 |
Beam Angle Cut | 110° | 110° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

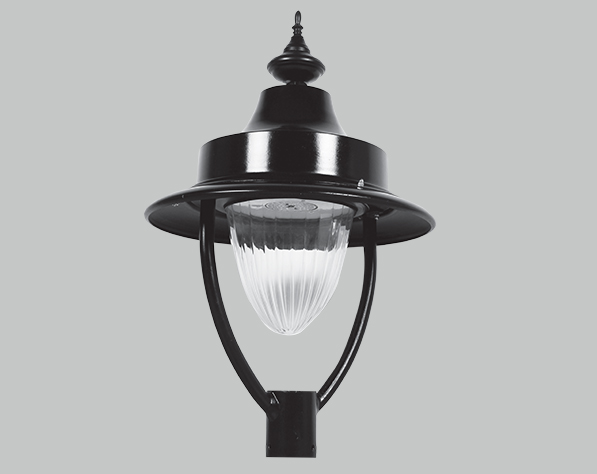

Post top fixture for pole mounted application. Aluminium housing with corrosion resistant powder coat and UV stabilised vandal proof clear diffuser. IP65 protection suitable for outdoor application.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LPM 4545 |
---|---|
Rated System Wattage | 45w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 90% |
System Efficacy | 75/80/85 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 10% |
Power Factor | ≥ 0.95 |
Surge Protection | 4kV |
CCT | 3000K/4000K/6000K |
CRI | > 80 |
Beam Angle Cut | 175° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

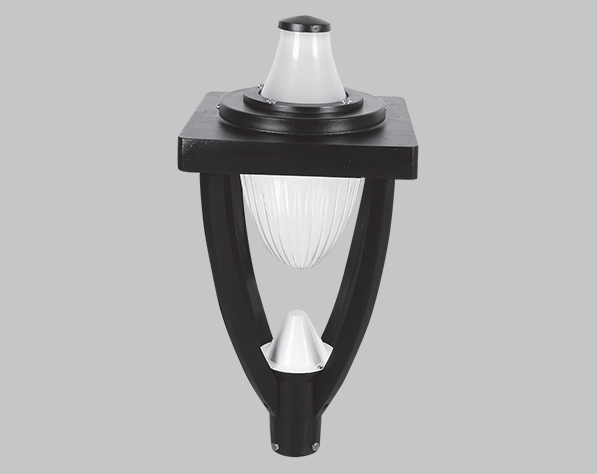

Post top fixture for pole mounted application. Aluminium housing with corrosion resistant powder coat and UV stabilized vandal proof clear diffuser. IP65 protection suitable for outdoor application.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LPB 1030 |
---|---|
Rated System Wattage | 30w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 90% |
System Efficacy | 75/80/85 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 10% |
Power Factor | ≥ 0.95 |
Surge Protection | 4kV |
CCT | 3000K/4000K/6000K |
CRI | > 80 |
Beam Angle Cut | 170° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
- Garden

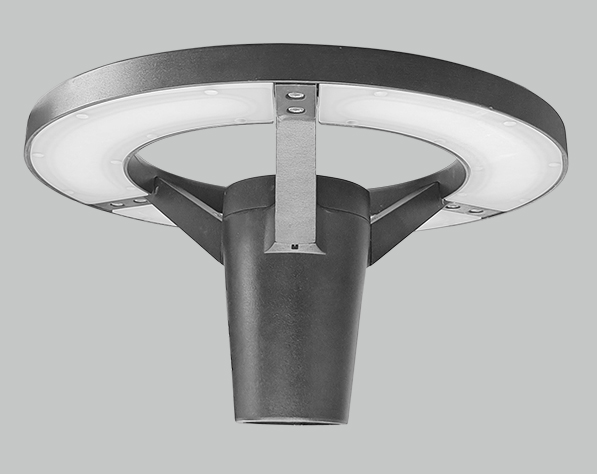

Post top fixture for pole mounted application. Aluminium housing with corrosion resistant powder coat and UV stabilized vandal proof clear diffuser. IP66 protection suitable for outdoor application.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | Lp0 1030 |
---|---|
Rated System Wattage | 25w |
IP Rating, Electrical Class | IP66, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 90% |
System Efficacy | 100/105/110 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 10% |
Power Factor | ≥ 0.95 |
Surge Protection | 4kV |
CCT | 3000K/4000K/6000K |
CRI | > 80 |
Beam Angle Cut | 230° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
- Garden

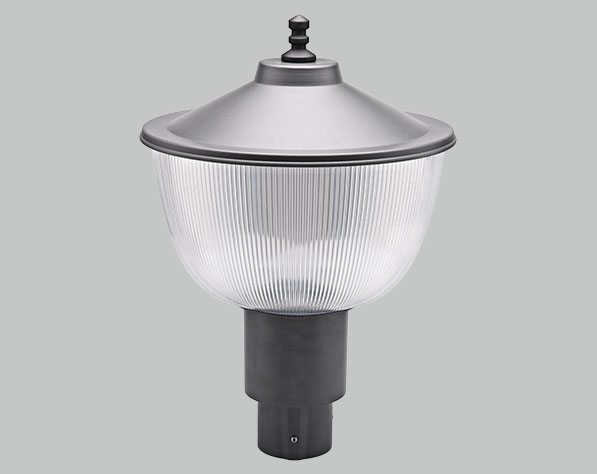

IP 65 Lamp Post is suitable for outdoor lighting applications. Luminaire is made in spin aluminium housing with corrosion resistant powder coated and UV stabilized vandal proof PC diffuser
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LPB 4045 |
---|---|
Rated System Wattage | 45w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 90% |
System Efficacy | 70/75/80 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 10% |
Power Factor | ≥ 0.95 |
Surge Protection | 4kV |
CCT | 3000K/4000K/6000K |
CRI | > 80 |
Beam Angle Cut | 190° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns
- Garden
IP 65 Lamp Post is suitable for outdoor lighting applications. Luminaire is made in die-cast aluminium housing with corrosion resistant powder coated and UV stabilized vandal proof PC diffuser.
- Extruded Aluminium Housing Better Heat Dissipation.
- Stylish Elegant Design.
- Fully weather proof.
- IP66, high Ingress protection against dust and moisture.
- No harmful ultraviolet radiations.
- High quality material and design
Parameters | LPT 3045 |
---|---|
Rated System Wattage | 45w |
IP Rating, Electrical Class | IP65, Class I |
Driver Type | HPF Isolated |
Driver Efficiency | ≥ 90% |
System Efficacy | 70/75/80 lm/W |
Operating Voltage Range | 120V-300V ~ 50Hz |
ITHD | ≤ 10% |
Power Factor | ≥ 0.95 |
Surge Protection | 4kV |
CCT | 3000K/4000K/6000K |
CRI | > 80 |
Beam Angle Cut | 200° |
- Outdoor Corridor
- Passage way
- Building Wall
- Columns

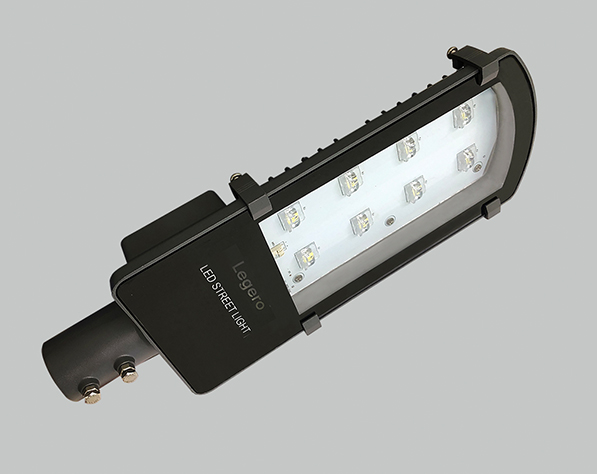

IP 66 LED street light with high pressure aluminium die-cast body and toughened glass. Powered with high efficacy LED chips to give the best output
- Long Lasting, Eco-friendly, non-Hazardous.
- Stylish Elegant Design.
- Superior heat sink for Better Heat Dissipation.
- Pressure Die-cast Housing with toughened glass.
- Long Life Span
Parameters | (a) LRS 99020 | (a) LRS 99025 | (a) LRS 99030 | (b) LRS 99040 | (b) LRS 99050 |
---|---|---|---|---|---|
Rated System Wattage | 20w | 25w | 30w | 40w | 50w |
IP Rating, Electrical Class | IP65, Class I | IP65, Class I | IP65, Class I | IP65, Class I | IP65, Class I |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 85% | ≥ 85% | ≥ 85% | ≥ 88% | ≥ 88% |
System Efficacy | 90 lm/W | 95 lm/W | 90 lm/W | 100 lm/W | 90 lm/W |
Operating Voltage Range | 140V-270V ~ 50Hz | 140V-270V ~ 50Hz | 140V-270V ~ 50Hz | 140V-300V ~ 50Hz | 140V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 4kV | 4kV | 4kV | 4kV | 4kV |
CCT | 6000K | 6000K | 6000K | 6000K | 6000K |
CRI | > 80 | > 80 | > 80 | > 80 | > 80 |
Beam Angle Cut | 100° | 100° | 100° | 100° | 100° |
Over Voltage Protection | Cut off at ≥280 ± 10Vac | Cut off at ≥280 ± 10Vac | Cut off at ≥280 ± 10Vac | Cut off at ≥280 ± 10Vac | Cut off at ≥280 ± 10Vac |
Under Voltage Protection | Cut off at ≤130 ± 10Vac | Cut off at ≤130 ± 10Vac | Cut off at ≤130 ± 10Vac |
- City roads
- Peripheral wall
- Residential outdoor
- Double height entry area
- Industry and Office Campus
- Parking Areas
- Gardens
- Security lighting
IP 66 LED street light with high pressure aluminium die cast body and lens toughened glass. Powered with high watt LED chips to give the best output. Wider spread angle of lens with toughened glass provide extra coverage of light on road.
- Long Lasting, Eco-friendly, non-Hazardous.
- Stylish Elegant Design.
- Superior heat sink for Better Heat Dissipation.
- Pressure Die-cast Housing with toughened glass and lens.
- Driver protection against lightening over voltage,short circuit.
- Long Life Span.
Parameters | (a) LCL 0018 | (a) LCL 0024 | (b) LCL 0036 | (b) LCL 0045 | (c) LCL 0060 |
---|---|---|---|---|---|
Rated System Wattage | 18w | 24w | 36w | 45w | 60w |
IP Rating, Electrical Class | IP66, Class I | IP66, Class I | IP66, Class I | IP66, Class I | IP66, Class I |
Driver Type | HPF Isolated | HPF Isolated | HPF Isolated | HPF Isolated | HPF Isolated |
Driver Efficiency | ≥ 85% | ≥ 85% | ≥ 85% | ≥ 85% | ≥ 88% |
System Efficacy | 150lm/W | 150lm/W | 150lm/W | 100 lm/W | 100lm/W |
Operating Voltage Range | 140V-270V ~ 50Hz | 140V-270V ~ 50Hz | 120V-270V ~ 50Hz | 120V-300V ~ 50Hz | 120V-300V ~ 50Hz |
ITHD | ≤ 10% | ≤ 10% | ≤ 10% | ≤ 10% | ≤ 10% |
Power Factor | ≥ 0.95 | ≥ 0.95 | ≥ 0.98 | ≥ 0.95 | ≥ 0.95 |
Surge Protection | 4kV | 4kV | 4kV | 4kV | 10kV |
CCT | 5700K | 5700K | 5700K | 5700K | 5700K |
CRI | > 70 | > 70 | > 70 | > 70 | > 70 |
Beam Angle Cut | 125° x 45° | 125° x 45° | 125° x 45° | 125° x 45° | 125° x 45° |
Over Voltage Protection | Cut off at ≥280 ± 10Vac | Cut off at ≥280 ± 10Vac | Cut off at ≥335 ± 10Vac | Cut off at ≥335 ± 10Vac | Cut off at ≥320 ± 10Vac |
Under Voltage Protection | Cut off at ≤130 ± 10Vac | Cut off at ≤130 ± 10Vac | Foldback at ≤150Vac ± 10V |
- Important roads with medium and fast traffic area
- Road inside campus area
- Periphery/Security lighting
- Shopping-Arcades
- Industrial roads
- Parking Areas
- Gardens
- Other general applications
