Industrial environments are highly task oriented and the visual requirements are multifold. With more and more focus being given on speed and accuracy, good lighting is becoming very important.Spiralling energy costs are eating away hard earned profits and there an increased emphasis on cost and energy efficiency.We at LEGERO understand the challenges of high ceiling environments and the difficulty customers face in managing difficult industrial environment.We as the leaders in energy efficient industrial solutions and have a range of LED solutions to fit your needs.State of art LED Lighting solutions that are far advanced in terms of efficiency and performance are available with us that offers you a new generation of low maintenance & energy saving lighting systems that enhances light quality, drives down cost and reduces carbon footprint.

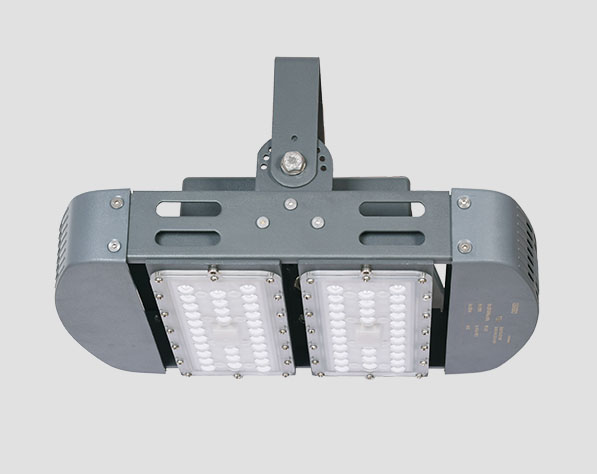

The BLAZE modular Highbay is a hassle free replacement of general highbay in industries. Blaze comeswith light efficacy of 150 lm/w & customized LED Light module and various precision lens optics packages. Blaze comes with decorative design and multiple color option. Aluminum die-cast module with unique designed heat sink fins provide thermal management to natural convection. Decorative Polycarbonate End caps give an aesthetic appeal to the product. Various hanging angles are provided in the mounting clampfor mounting light in different angles. Each module comes with its separate driver section. Precision lens optic system optimizes illumination for open floor, racked or aisle way applications.
| CODE | LBL-N 040/LBL-N 050/LBL-N 080/LBL-N 0100/LBL-N 0120/LBL-N 0150/LBL-N 0200 |
|---|---|
| WATTAGE | 40W/50W/80W/100W/120W/150W/200W |
| CCT | 5700K |
| BEAM ANGLE | 60°/90° |
| EFFICACY (lm/W) | 150 |
| LENS/REFLECTOR | Optical Lens |
| CRI | >70 |
| IP | IP66 |
| WARRANTY | 5 Years |
| DIMENSION (lXbXh)mm | 217(40W/50W)/325(80W/100W)/422(120W/150W)522(200W)X228X100 |
| Over Voltage Protection | Cut off at ≥325 ± 5Vac |
| Under Voltage Protection | Cut off at ≤95 ± 5Vac |
| MOUNTING TYPE | Surface / Suspended |
- Attractive disc shape design with aesthetic appeal.
- IP66 High Ingress Protection against Dust and Moisture
- high quality material and design
- Multiple Mounting Including: Hook, Pendent and Brackets.
- Long Lasting, Eco-friendly, non-Hazardous.
- Comfortable light with low glare.
- Suitable for rough industrial application.
- Ware Houses
- Industry Area
- Exhibition Hall

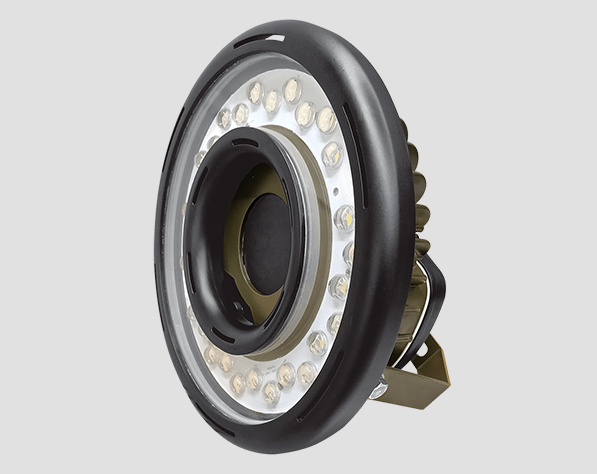

Elegant round Highbay luminaire design along with lens & toughened glass which is designed to replace traditional High bays. The system delivers simple, point to point replacement with easy installation methods of hook, pendants and brackets. Unique matt finish powder coating gives alluring look to the fixture. A Multi electronic driver in the housing provides extra performance and unique feature to the product.
| CODE | LDH 080/LDH 100 |
|---|---|
| WATTAGE | 80W/100W |
| CCT | 3000K/4000K/5700K |
| BEAM ANGLE | 60°/90° |
| EFFICACY (lm/W) | 100/105/110 |
| LENS/REFLECTOR | Optical Lens & Toughened Glass |
| CRI | >70 |
| IP | IP66 |
| WARRANTY | 5 Years |
| DIMENSION (lXbXh)mm | 275X122 |
| Over Voltage Protection | Cut off at ≥330 ± 10Vac |
| Under Voltage Protection | Foldback at ≤150Vac ± 10V |
| MOUNTING TYPE | Surface / Suspended |
- Attractive disc shape design with aesthetic appeal.
- IP66 High Ingress Protection against Dust and Moisture
- high quality material and design
- Multiple Mounting Including: Hook, Pendent and Brackets.
- Long Lasting, Eco-friendly, non-Hazardous.
- Comfortable light with low glare.
- Suitable for rough industrial application.
- Ware Houses
- Industry Area
- Exhibition Hall
Elegant round Highbay luminaire design along with lenses & glasses is designed to replace traditional Highbays. The system delivers simple, point to point replacement with easy installation methods of hook, pendants and brackets. Unique matt finish powder coating gives alluring look to the fixture.
| CODE | LRO 080/LRO 100/LRO 120/LRO 150/LRO 200 |
|---|---|
| WATTAGE | 80W/100W/120W/150W/200W |
| CCT | 3000K/5700K |
| BEAM ANGLE | 60°/90° |
| EFFICACY (lm/W) | (110/115)80W / (115/120)100W/120W/150W/200W |
| LENS/REFLECTOR | Optical Lens & Toughened Glass |
| CRI | >70 |
| IP | IP66 |
| WARRANTY | 2-3 Years |
| DIMENSION (lXbXh)mm | 276X140(80W)/320X130(100W/120W)/365X150(150W/200W) |
| Over Voltage Protection | Cut off at ≥320 ± 10Vac(80W)/≥330 ± 20Vac(100W)/≥325 ± 10Vac(120W/150W/200W) |
| Under Voltage Protection | Foldback at ≤150 ± 10Vac(100W)/Cut off at ≤95 ± 10Vac(150W) |
| MOUNTING TYPE | Surface / Suspended |
- Attractive disc shape design with aesthetic appeal.
- Energy saving of up to 80% compared to HID System.
- IP66, high Ingress protection against dust and moisture
- Multiple Mounting Including: Hook, Pendent and Brackets.
- High lumen efficacy.
- Comfortable light with low glare.
- Suitable for rough industrial application
- Ware Houses
- Industry Area
- Exhibition Hall

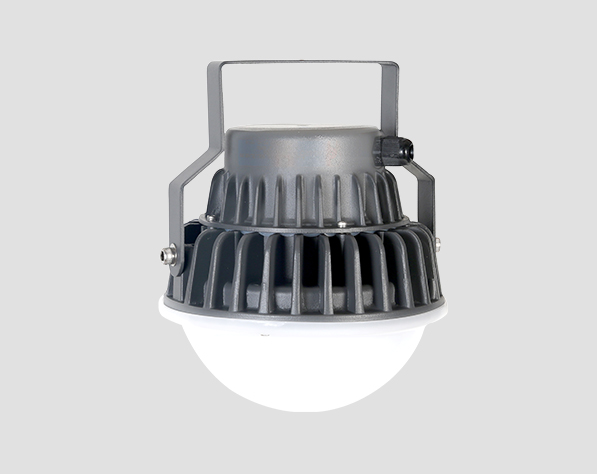

Axel is an Innovative LED well glass luminaire for direct replacement of 100W Conventional Fixture. Axel has the potential to save up to 60% of energy without compromising lighting parameters in the existing installation. Axel is widely used in various applications in diversified sector. It is developed by using advance technology and requisition tool in compliance with quality standards. Available in both opal & clear vandal resistant polycarbonate diffuser
| CODE | LAX-O 040 (Opal)/LAX-O 040 (Clear) |
|---|---|
| WATTAGE | 40W |
| CCT | 6500K |
| BEAM ANGLE | 140°(Opal) / 110°(Clear) |
| EFFICACY (lm/W) | 75(Opal) / 100(Clear) |
| LENS/REFLECTOR | Milky / Clear |
| CRI | >80 |
| IP | IP66 |
| WARRANTY | 2-3 Years |
| DIMENSION (0Xh)mm | 120X180 |
| MOUNTING TYPE | Surface / Suspended |
- Stylish Design powder coated Aluminum Die-cast Housing
- Long Life Span
- Soft and uniform light distribution
- IP66, high Ingress protection against dust and moisture
- Multiple Mounting Including: Hanging and Bracket
- Ideal design for rough industrial application
- Ware Houses
- Industry Area
- Exhibition Hall

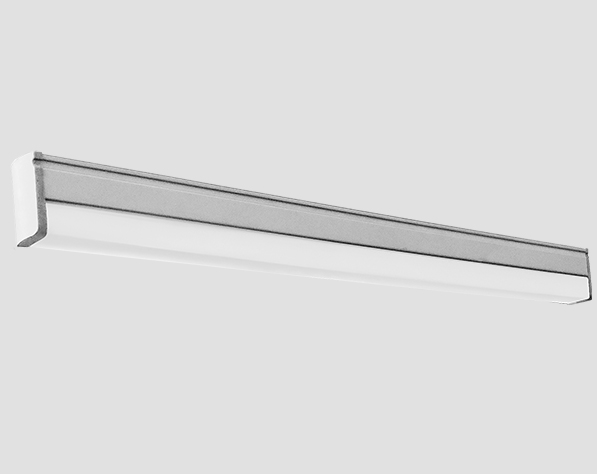

Aluminium extruded LED batten light in square shape with high efficient polycarbonate diffuser for uniform lighting.
| CODE | RBJ 100 0012/RBJ 100 0024/RBJ 100 0036 |
|---|---|
| WATTAGE | 12W/24W/36W |
| CCT | 3000K/4000K/6000K |
| BEAM ANGLE | 140° |
| EFFICACY (lm/W) | 95/100/105(12W) / 100/105/110(24W/36W) |
| LENS/REFLECTOR | Low Glare PC Diffuser |
| CRI | >80 |
| IP | IP20 |
| WARRANTY | 2 Years |
| DIMENSION (lXbXh)mm | 601(12W)/1176(24W/36W)X24X38 |
| MOUNTING TYPE | Surface |
- Soft and Uniform Light Distrubution.
- High efficacy upto 110 Lumen per watt.
- Long Lasting, Eco-friendly, non-Hazardous.
- Enjoy excellent lighting comfort no glare.
- The batten suitable for surface mounting.
- Energy saving upto 80%.
- Retail Shops
- Parking Areas
- Railway Waiting rooms & Platforms
- Industries
- Warehouses

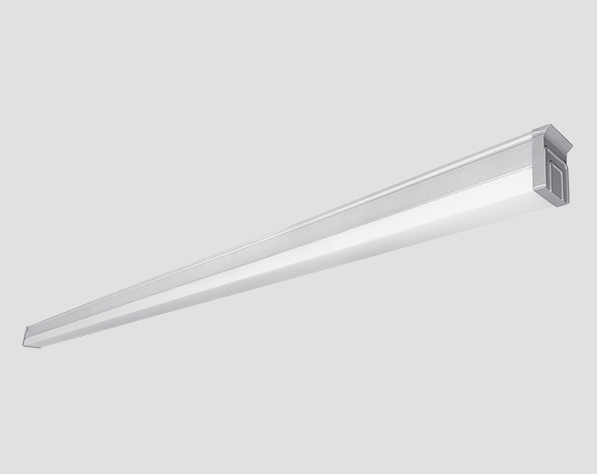

The stripo led batten in square shape with aluminium housing & PC end cap. The luminaire and its components are designed for Indoor application. Inbuilt high efficient LEDs used with milky white diffuser for glare free high luminious output.
| CODE | LST 1240 |
|---|---|
| WATTAGE | 40W |
| CCT | 3000K/4000K/6000K |
| BEAM ANGLE | 130° |
| EFFICACY (lm/W) | 90/95/100 |
| DIFFUSER | Low Glare PC Diffuser |
| CRI | >70 |
| IP | IP20 |
| WARRANTY | 2 Years |
| DIMENSION (lXbXh)mm | 1196X35.4X44 |
| MOUNTING TYPE | Surface |
- Soft and Uniform Light Distrubution.
- High efficacy 100 Lumen per watt.
- Long Lasting, Eco-friendly, non-Hazardous.
- Enjoy excellent lighting comfort no glare.
- The batten suitable for surface mounting.
- Energy saving upto 80%.
- Retail Shops
- Parking Areas
- Railway Waiting rooms & Platforms
- Industries
- Warehouses

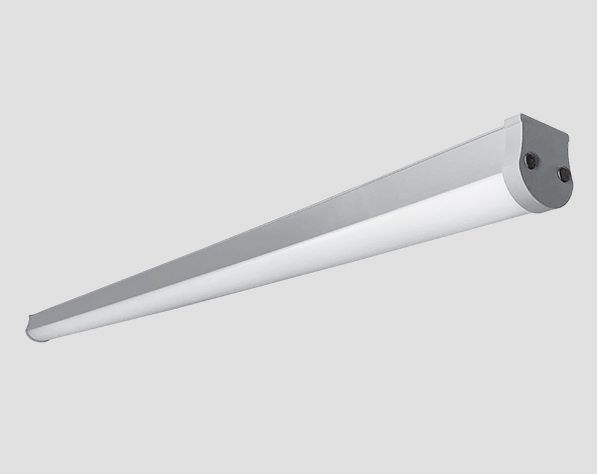

The Strix (Industrial Batten) is the highly efficient and reliable IP65 led lighting solution. The luminaire and its components are designed for Indoor & Outdoor application. Inbuilt high efficient LEDs used with PC housing & milky white diffuser for glare free luminious output.
| CODE | LSB 1220/LSB 1240 |
|---|---|
| WATTAGE | 20W/40W |
| CCT | 3000K/4000K/6000K |
| BEAM ANGLE | 125° |
| EFFICACY (lm/W) | 90/95/100 |
| DIFFUSER | Low Glare PC Diffuser |
| CRI | >80 |
| IP | IP65 |
| WARRANTY | 2 Years |
| DIMENSION (lXbXh)mm | 633(20W)/1217(40W)X54X53 |
| MOUNTING TYPE | Surface / Suspended |
- Replacement for the popular fluorescent lamp fittings.
- Easy installation with fast connection.
- Instant start does not flicker.
- Do not need Ballast and Starter, low power consumption.
- Glare free evenly Distributed.
- Long Life Span.
- Ware Houses
- Industry Area
ASTRA Floodlight is a universal, compact range of floodlights with two type of beam angle lens. The range is suitable for various applications around buildings, ideal for facade lighting as well as lighting gardens, paths near to buildings, garages, entrance ways, security lighting and drives. This IP 66 product comes with fixture efficacy of 110 lm/w.
| CODE | LAS 0030/LAS 0050/LAS0075/LAS 0100 |
|---|---|
| WATTAGE | 30W/50W/75W/100W |
| CCT | 3000K/5700K |
| BEAM ANGLE | 60°/90° |
| EFFICACY (lm/W) | {95/105(60°) & 90/100(90°)}30W / {110/120(60°) & 115/125(90°)}50W / (100/110)75W |
| LENS/REFLECTOR | Optical Lens & Toughened Glass |
| CRI | >70 |
| IP | IP66 |
| WARRANTY | 2-3 Years |
| DIMENSION (lXbXh)mm | 181(30W)/219(50W)/270(100W)X141(30W)/179(50W)/220(100W)/X112(30W)/106(50W)/128(100W) |
| Over Voltage Protection | Cut off at ≥280 ± 10Vac / ≥335 ± 10Vac / Cut off at ≥320 ± 10Vac / ≥330 ± 20Vac |
| Under Voltage Protection | Cut off at ≤130 ± 10Vac(30W) / Foldback at ≤150 ± 10Vac(100W) |
| MOUNTING TYPE | Surface / Suspended |
- Aesthetically elegant & functional design.
- Highest efficiency.
- Uniform Light Distribution.
- Save upto 80% of Energy.
- IP 66, high Ingress protection against dust and moisture.
- Different optics for various application with option of 60° / 90°.
- Individual drivers for each module.
- Area lighting
- Bill-board
- Façade
- Industry Area
- Recreational Sports
- Other general applications

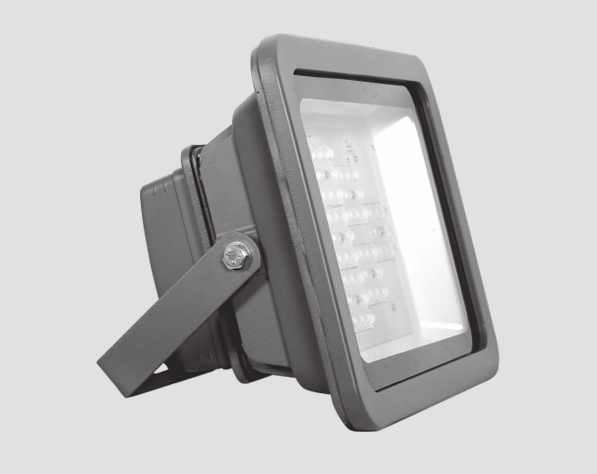

IP 66 LED flood light with Elegant squarish design with modular lens. Powder coated finish with cradle mounting facility
| CODE | LSK 1030/LSK 1050/LSK 1100/LSK 1200 |
|---|---|
| WATTAGE | 30W/50W/100W/200W |
| CCT | 6000K |
| BEAM ANGLE | 75°(30W/50W/200W) / 60°(100W) |
| EFFICACY (lm/W) | 90(30W)/100(50W/100W/200W) |
| LENS/REFLECTOR | Optical Lens |
| CRI | >80 |
| IP | IP66 |
| WARRANTY | 5 Years |
| DIMENSION (lXbXh)mm | 197X188X37(30W)/238X228X37(50W)/292X282X50(100W)/363X352X50(200W) |
| Over Voltage Protection | Cut off at ≥280 ± 10Vac(30W)/≥325 ± 10Vac(50W/100W/200W) |
| Under Voltage Protection | Cut off at ≤130 ± 10Vac(30W)/≤100 ± 10Vac(50W/100W/200W) |
| MOUNTING TYPE | Surface |
- Aesthetically elegant & functional design.
- Highest efficiency.
- Uniform Light Distribution.
- Save upto 80% of Energy.
- IP 66, high Ingress protection against dust and moisture
- Area lighting
- Bill-board
- Façade
- Industry Area
- Recreational Sports
- Other general applications
